HYROX COMPETITION PERFORM RIG



The Centr x Hyrox Perform Rig suits gyms of all sizes and anchors any Hyrox Performance Center space. Built for stability, it features 11-gauge steel, 5 mm powder coat paint, and through-plate welded construction.

Available in three configurations, it includes built-in storage for Centr x HYROX Official equipment such as Wall Balls, Kettlebells, Sandbags, Power Ropes, Bumper Plates and even Dumbbells.



SPECIFICATIONS & COMPONENTS



ACCESSORY STORAGE



• 4 ft / 121.9 cm wide
• Angle mounted or flat
• Thick rubber cover to absorb sound and prevent scratches



BUMPER PLATE STORAGE



• 4 ft / 121.9 cm wide
• 1 x Vertical post for smaller weights
• 7 x Vertical dividers for plate storage



WALL BALL STORAGE



• 4 ft / 121.9 cm wide
• 2 x Adjustable horizontal beams with 6 different positions to fit multiple ball diameters



PULL UP BAR



• 4 ft / 121.9 cm wide
• 1.25 in / 3.2 cm diameter pull up bar
• Suitable for suspension strap training
• 0.2 in / 5 mm texture paint provides grip strength for pull ups



RIG TARGETS



• Commercial-grade steel, fully welded
• Target Plate Only 4 mm (L) x 245 mm (H) – 0.16 in (L) x 9 in (H)
• With Mounting Bracket 290 mm (L) x 628 mm (H) – 11.4 in (L) x 24.7 (H)



OPTIONAL ATTACHMENTS



• J-Hooks, Safeties, Lower Band Peg Attachments, Dip Step, Landmine



BATTLE ROPE STORAGE



• Upper Steel hooks



BATTLE ROPE ANCHORS



• Lower Steel hooks



FRAME



• 11-gauge steel
• 3 in x 3 in – 7.6 cm x 7.6 cm
• Must bolt to the floor



AVAILABLE RIG SIZES

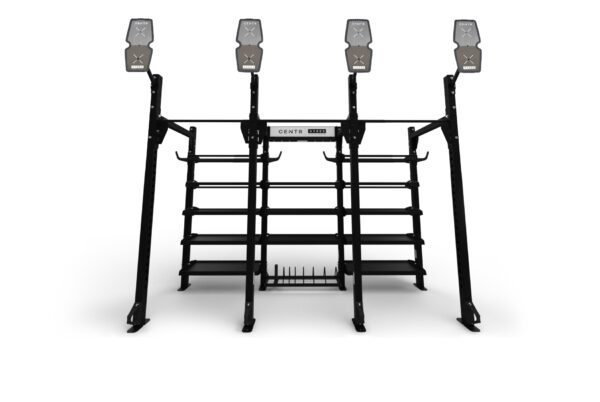

Model: HPR-4T

Class Size: Up to 16 members

Rig Targets: 4

Dimensions (LxWxH): 55.4 in x 154.8 in x 126.3 in / 140.7 cm x 393.2 cm x 320.8 cm

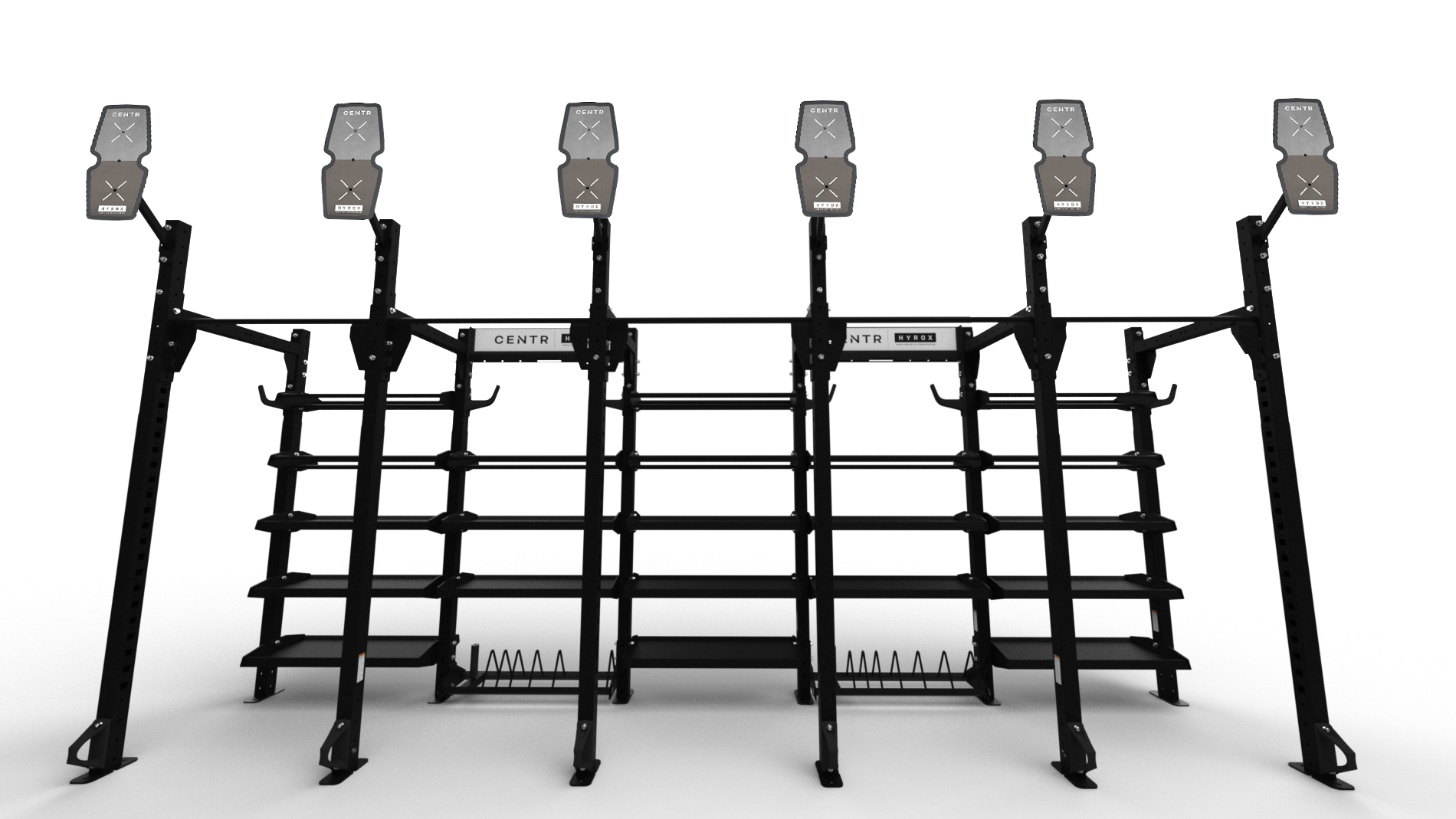

Model: HPR-6T

Class Size: Up to 24 members

Rig Targets: 6

Dimensions (LxWxH): 55.4 in x 245 in x 126.3 in / 140.7 cm x 622.3 cm x 320.8 cm

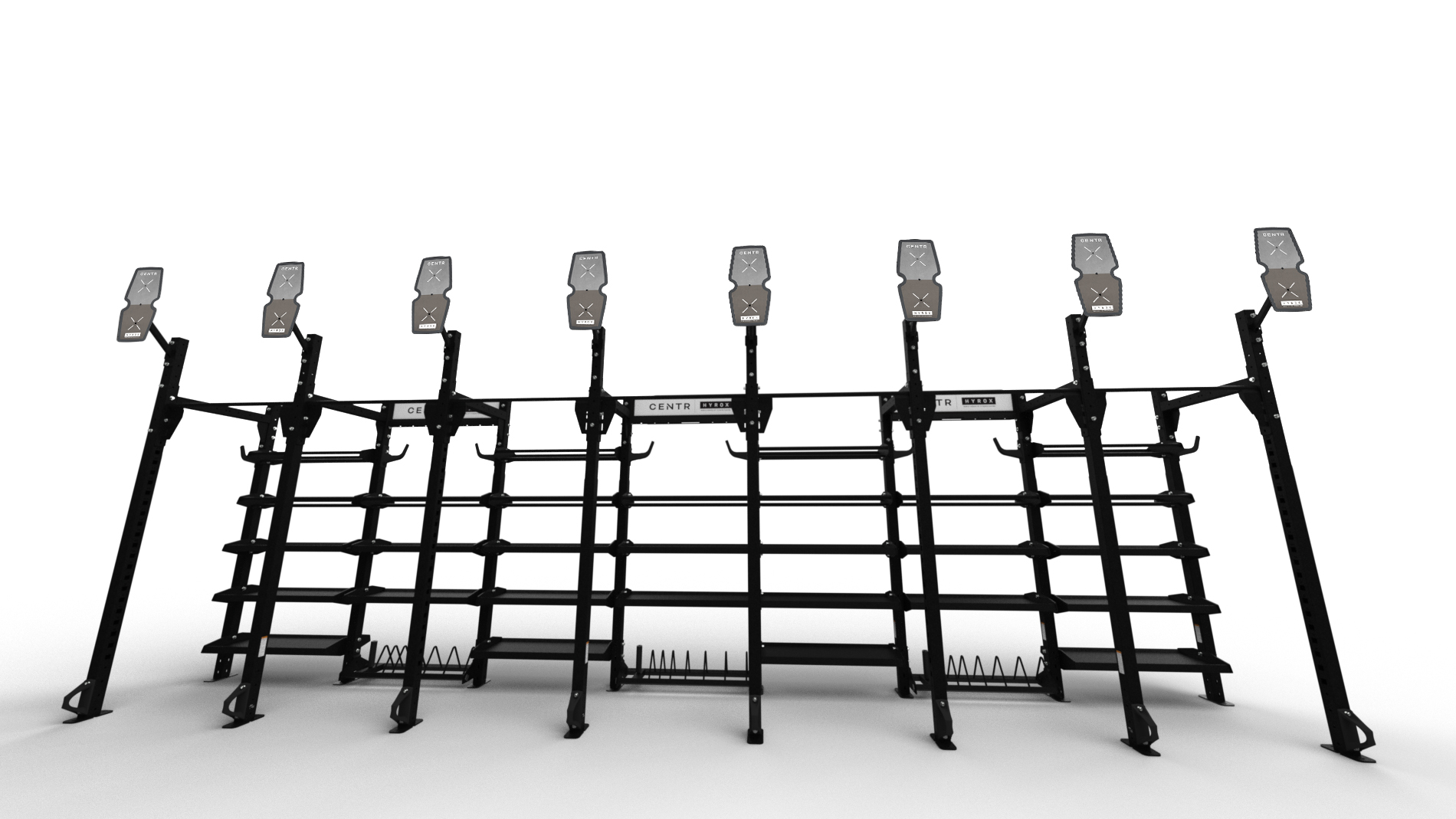

Model: HPR-8T

Class Size: Up to 32 members

Rig Targets: 8

Dimensions (LxWxH) 55.4 in x 335.2 in x 126.3 / 140.7 cm x  851.4 cm x 320.8 cm
